Daily Rental: $250.00
Weekly Rental: $900.00
Sell Price: $61,186.75
Description

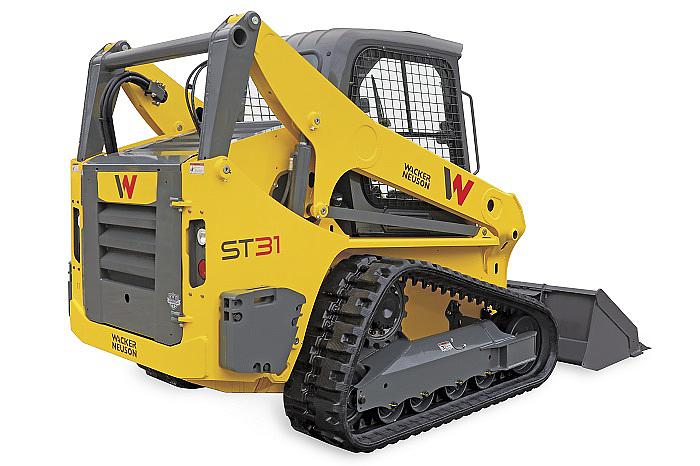

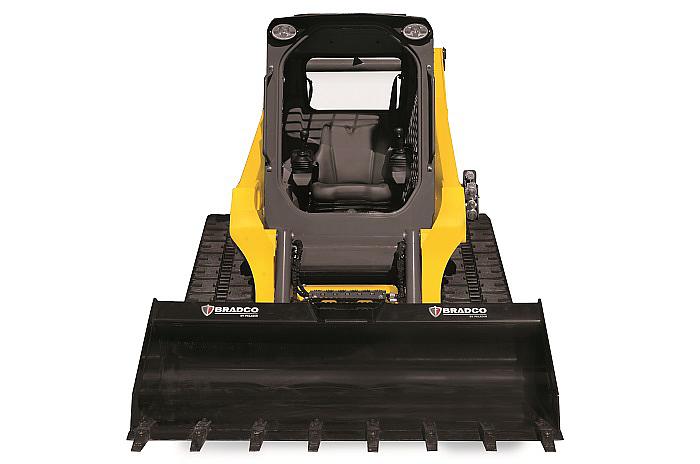

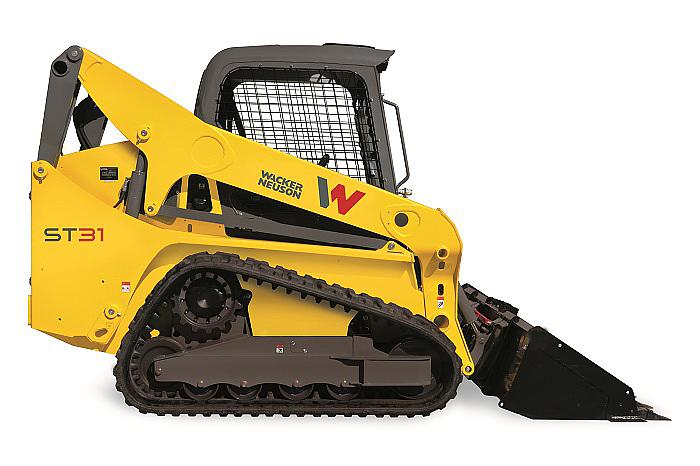

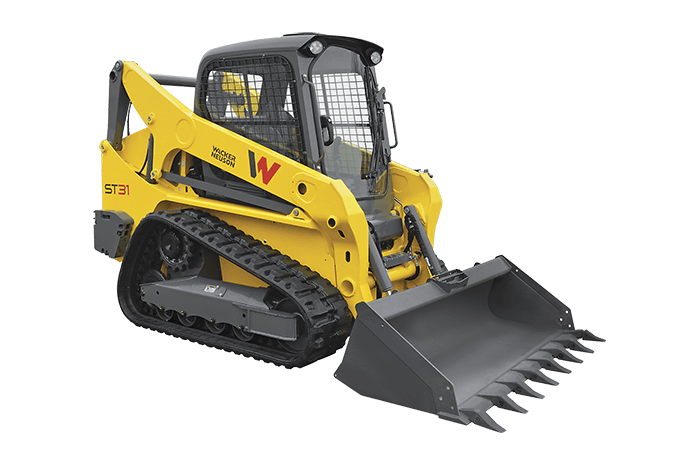

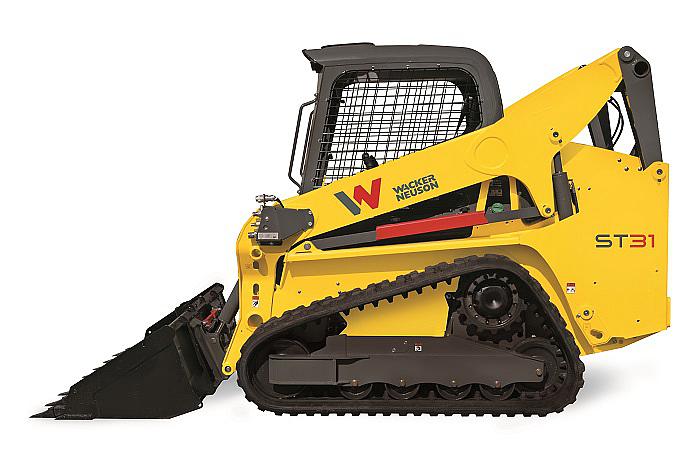

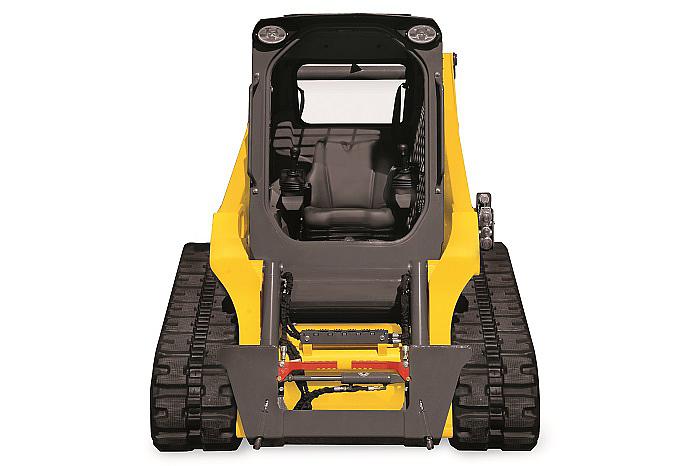

The ST31 offers the power and torque needed for any jobsite. This unit delivers 3,100 pounds of rated operating capacity at 50% and is a class leader with lift height over 125 inches. The machine is equipped with a 74 hp turbo-charged Kohler Tier 4 Final engine offering class leading engine torque . Mechanical Hand-Foot and Selectable EH controls ensures operators with any control preference can efficiently operate the machine. With generous door width and height, visibility of the attachment and the surroundings is superior to the competition.
Features
- With a top speed of nearly 10 MPH, travel time is reduced giving the operator more time throughout the day to get more tasks completed.
- Spacious extended cab maximizes room and comfort for the operator to move inside the cab.

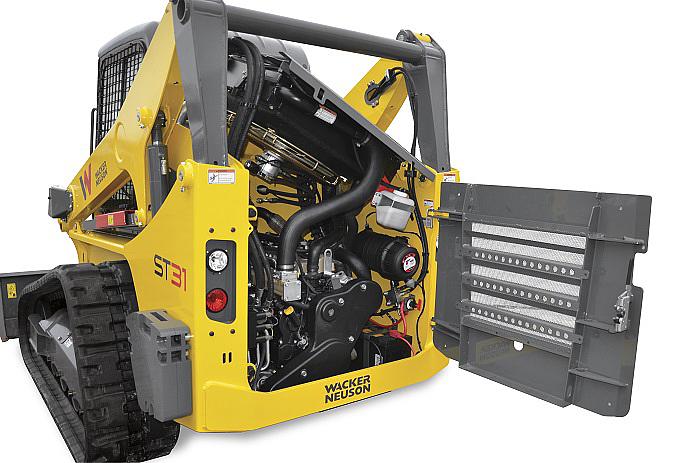

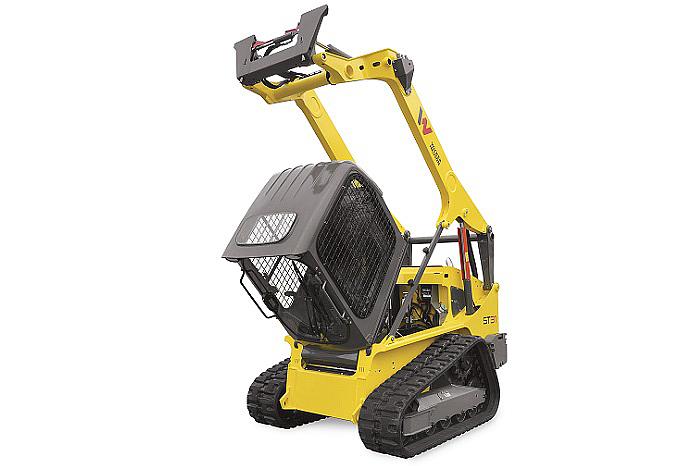

- Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain the machine.
- Class leading track-on-ground of 57.2" decreases ground pressure while increasing digging performance.
- Optional high flow hydraulics increase the range of usable attachments improving efficiency and productivity.
Specifications
Operating data
Height top of ROPS 83 in
Overall length w/ bucket 136.6 in
Overall length w/o bucket 106.6 in

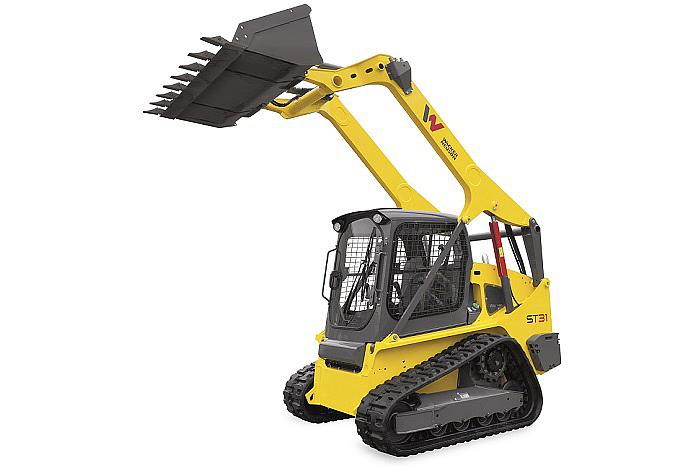

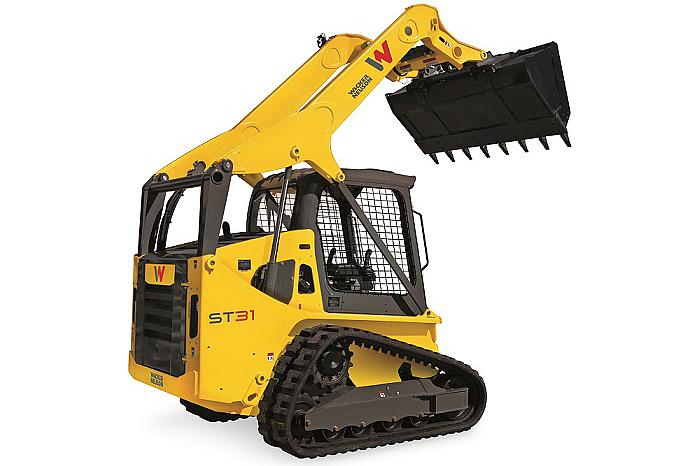

Height Hinge Pin Max 125.5 in
Operating weight 8,095 lb
Rated Operating Capacity ROC 50% 3,100 lb
Rated Operating Capacity ROC 35% 2,170 lb
Dump reach 36 in
Length of track on ground 57.2 in
Dump height max. at max height 97.2 in
Angle of departure 30.7 °
Tipping angle (bucket dump) w/ bucket at max height 42 °
Ground clearance 9.1 in
Breakout force max. - Bucket 5,300 lbf
Breakout force max. - Boom 5,000 lbf
Width 67.1 in
Width Track 12.6 in
Engine / Motor
Engine / Motor manufacturer Kohler
Engine / Motor KDI 2504 TCR
Engine performance 74 hp
Displacement 151.5 in³
RPM / speed 2,750 rpm
Battery 950 CCA
Fuel tank capacity 30 US gal
Hydraulic system
Auxiliary Hydraulics- Standard Flow 20 US gpm
Auxiliary Hydraulics- High Flow 30 US gpm
Pressure aux. relief 3,500 psi
Hydraulic oil tank 2.9 US gal
Power transmission
Travel speed low 7 mph
Travel speed high 10 mph
